Dock Stop HD Dock Gates
Dock Gates

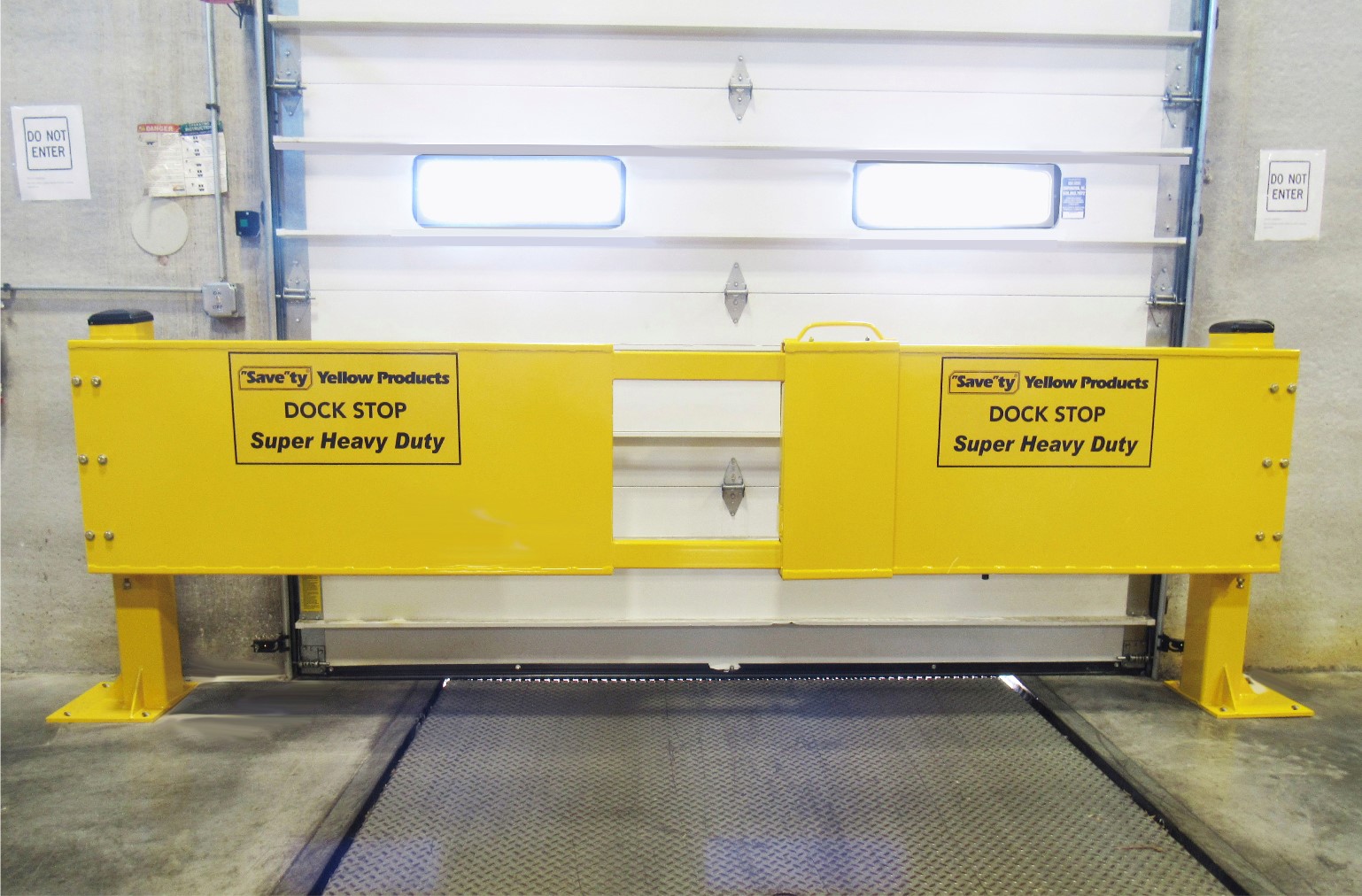

Our Strongest Dock Gate Ever! Dock Stop HD
Dock Stop HD stops fork trucks from driving or backing off of docks. It includes two rotating arms and locking slide bars with a locking pin. It also includes built in light levers so that the arms meet in the middle every time. Powder coated safety yellow and includes reflective "Stop" signs.
Dock Stop HD stops fork trucks from driving or backing off of docks. It includes two rotating arms and locking slide bars with a locking pin. It also includes built in light levers so that the arms meet in the middle every time. Powder coated safety yellow and includes reflective "Stop" signs.
- Oversized 12" x 12" x 5/8" base plates with gussets for strength.
- No pinch points when gate is closing.
- 5" steel posts.
- Two robust 1" pins support each gate arm.
- Adjustable wrap around plate bolts to post to support gate arms.
- Reinforced cross bar for strength behind panels.
- 42" tall, 19" under clearance.
- Impact rating - 10,000 lbs at 5 M.P.H..
- Meets OSHA requirements.
